DD15 Troubleshooting

Section 13.2 Belt Noise

Section 13.2
Belt Noise

Excessive belt noise can mean changing the belt drive tensioner or idler pulley or the poly-V belts. First inspect the belt drive tensioner system for wear and tear.‪

Section 13.2.1
Inspection of the Belt Drive Tensioner System

Check as follows:‪

  1. Inspect the belt contacts surface for chips, flaking, cracks and discoloration.

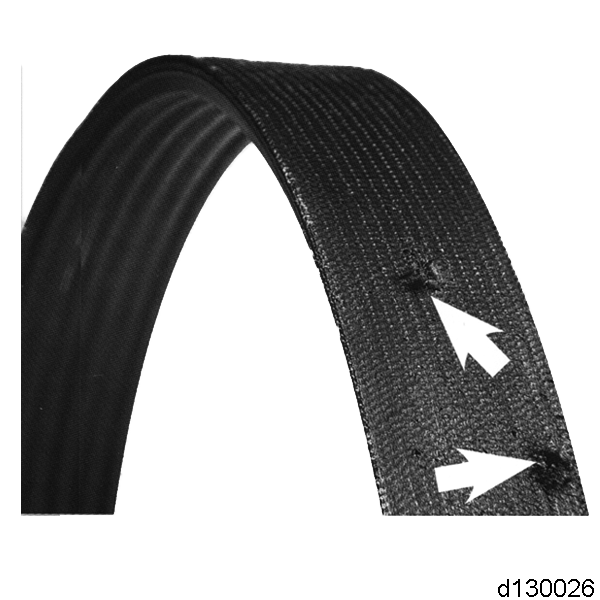

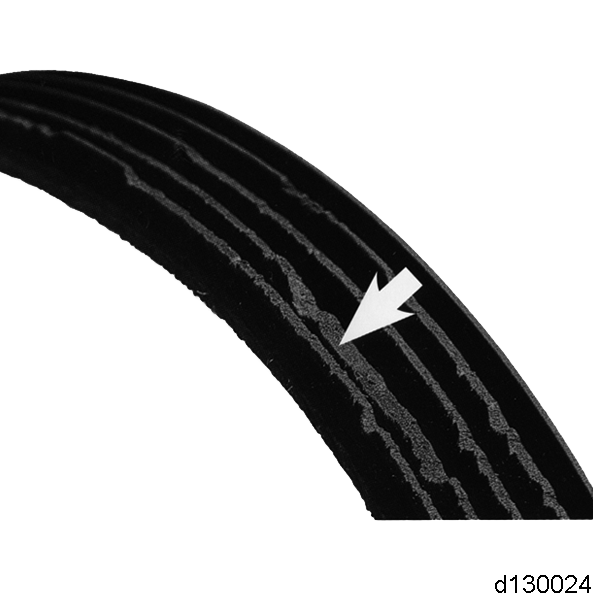

    ABRASION

    Click to see this graphic in a separate window

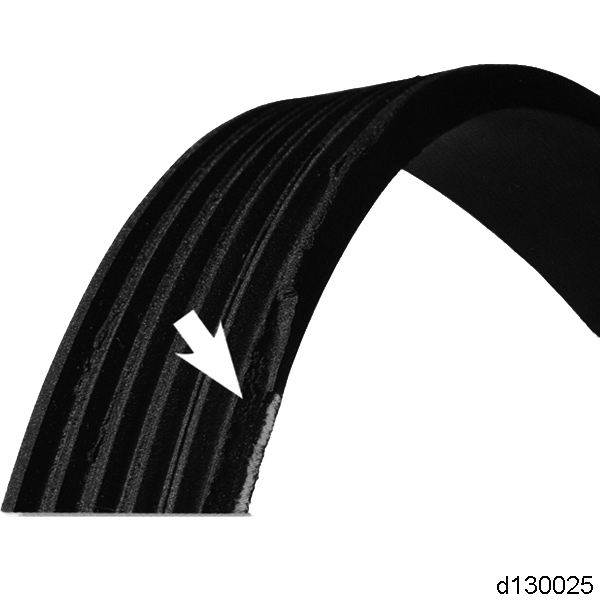

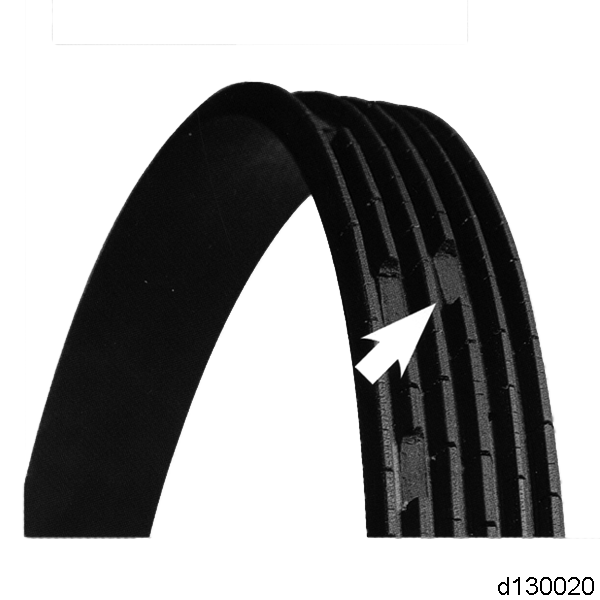

    CHUNK-OUT

    Click to see this graphic in a separate window

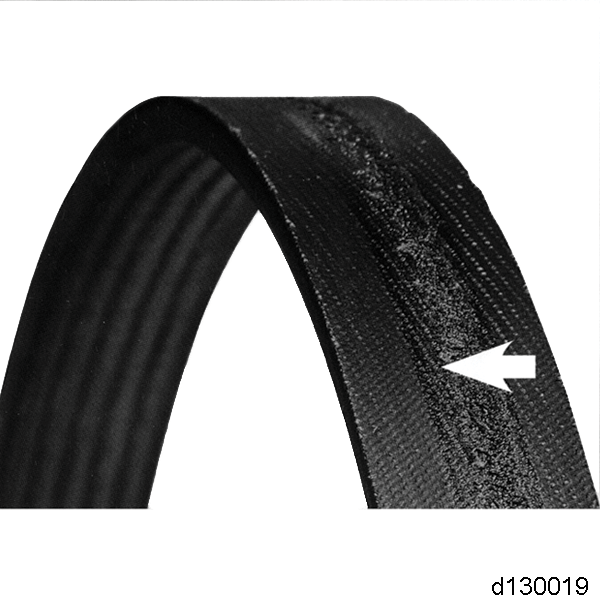

    IMPROPER INSTALL

    Click to see this graphic in a separate window

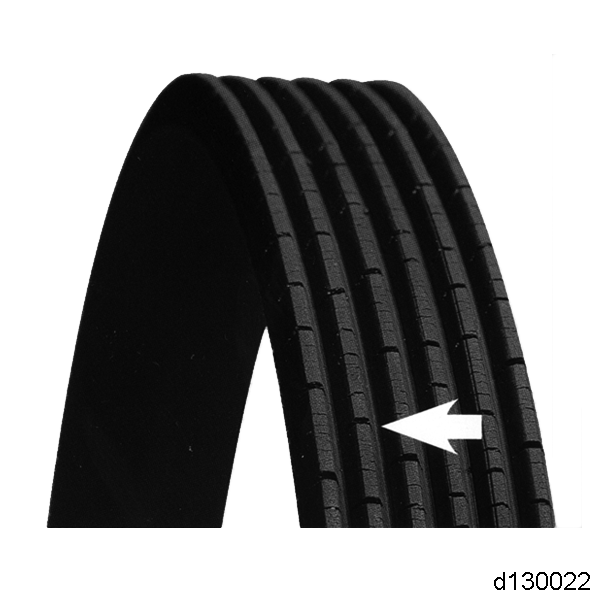

    CRACKING

    Click to see this graphic in a separate window

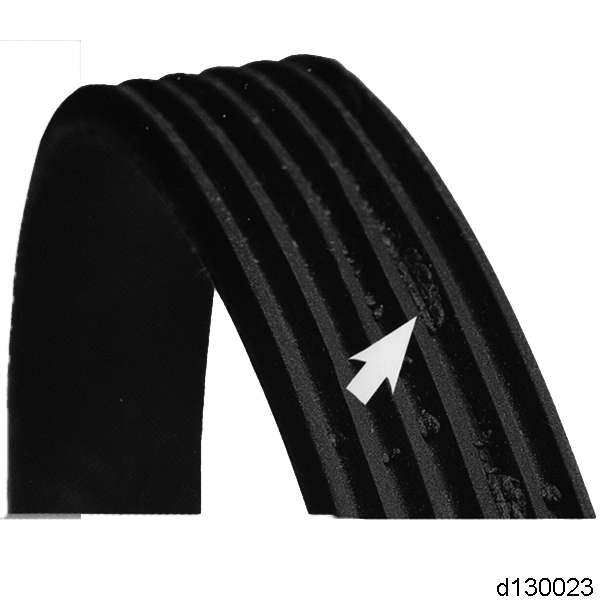

    PILLING

    Click to see this graphic in a separate window

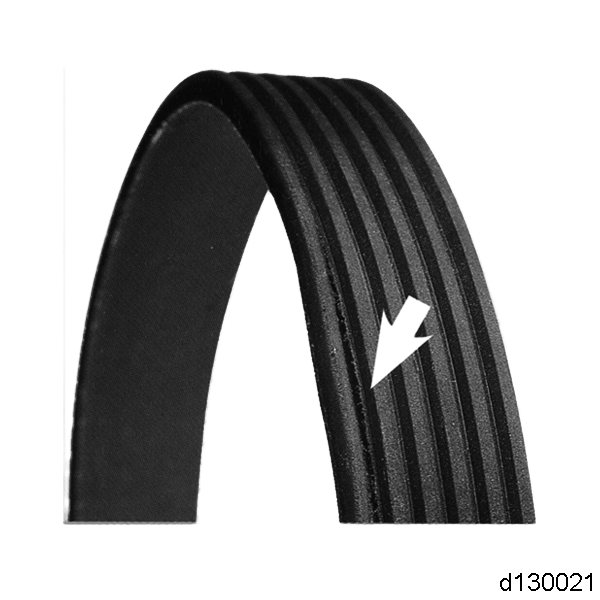

    UNEVEN RIB WEAR

    Click to see this graphic in a separate window

    MISALIGNMENT

    Click to see this graphic in a separate window

    GRAVEL PENETRATION

    Click to see this graphic in a separate window
  2. Inspect the bearings by rotating the pulleys to look for bearing slop or choppy feeling bearings.
  3. Inspect the springs on the tensioner. If the rubber is damaged or if the spring is damaged, change the assembly.

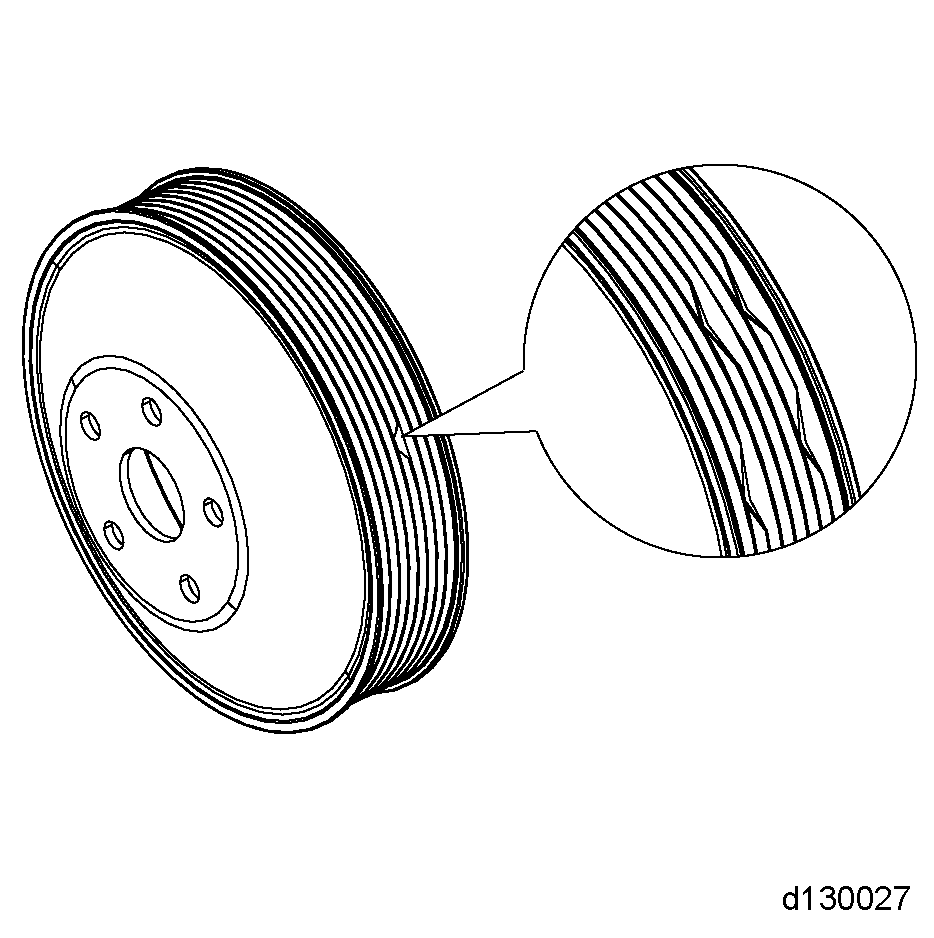

  4. Inspect the pulleys for damage and excessive wear. If pulleys or the belts are damaged, change the damaged pulley and the belt.
    Click to see this graphic in a separate window
  5. Check the belt wear pattern on all idler pulleys.
    1. If the belt wear pattern is incorrect (A), change the pulley and bracket assembly.
    2. If the belt wear pattern is correct (B), the idler and bracket can be reused.
    3. Click to see this graphic in a separate window


EPA07 DD15 Troubleshooting Guide - DDC-SVC-MAN-0029
Generated on 10-13-2008
