Section 6.3 Resetting the Pressure Limiting Valve Counter

Section 6.3
Resetting the Pressure Limiting Valve Counter

This procedure will allow a technician to retrieve and clear the PLV counter. The counter should be reset ONLY a PLV replacement. If the counter has reached a value of 50 or greater, the PLV should be replaced and the counter reset.‪

  1. Install and connect DDDL 7.0.
  2. Navigate to the “Service Routines” panel.
    Click to see this graphic in a separate window
  3. Click on the “Actions” tab located at the top of the screen.
    Click to see this graphic in a separate window

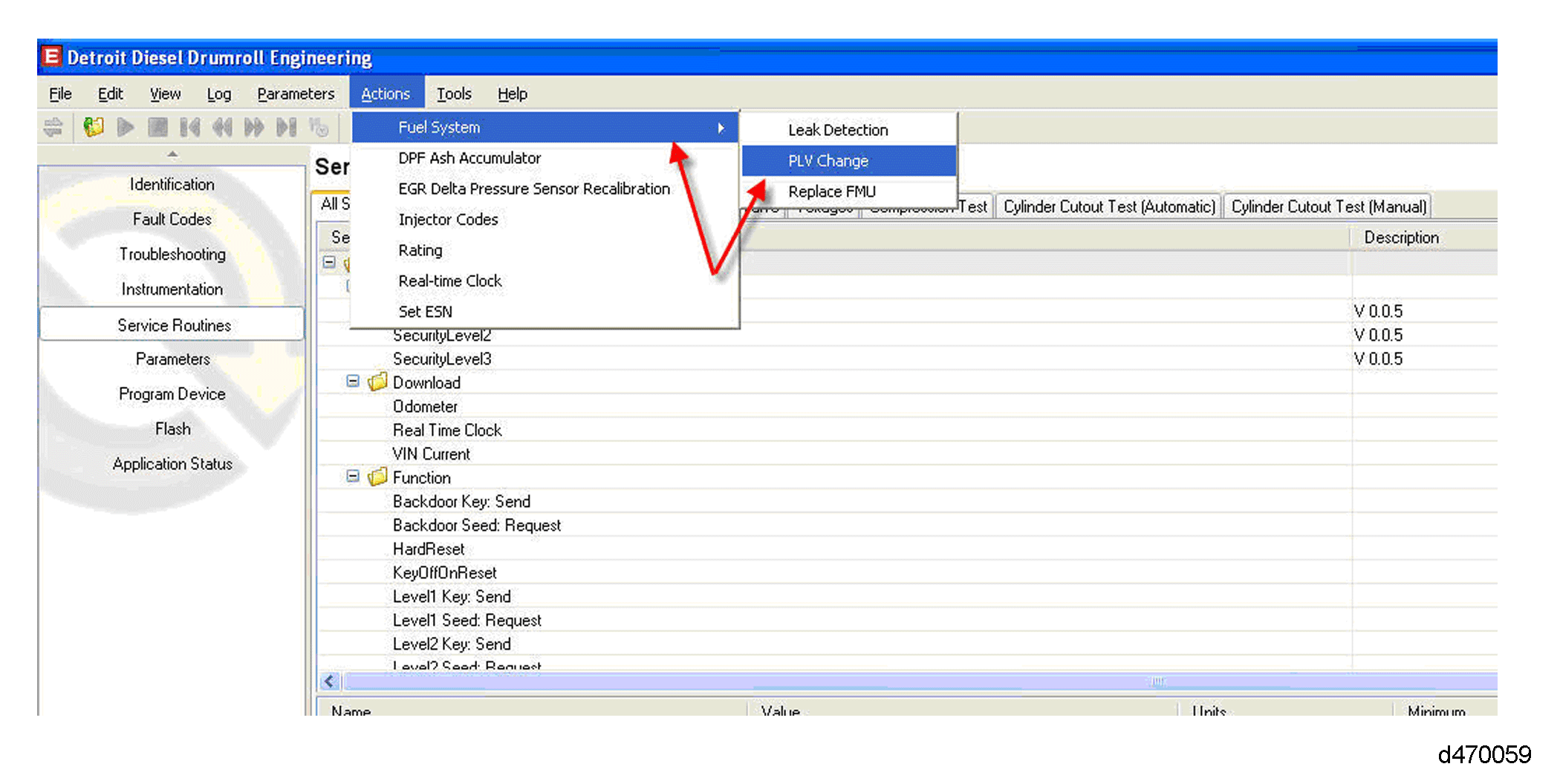

  4. Click on the tab labeled “Fuel System” and then “PLV Change”.
    Click to see this graphic in a separate window

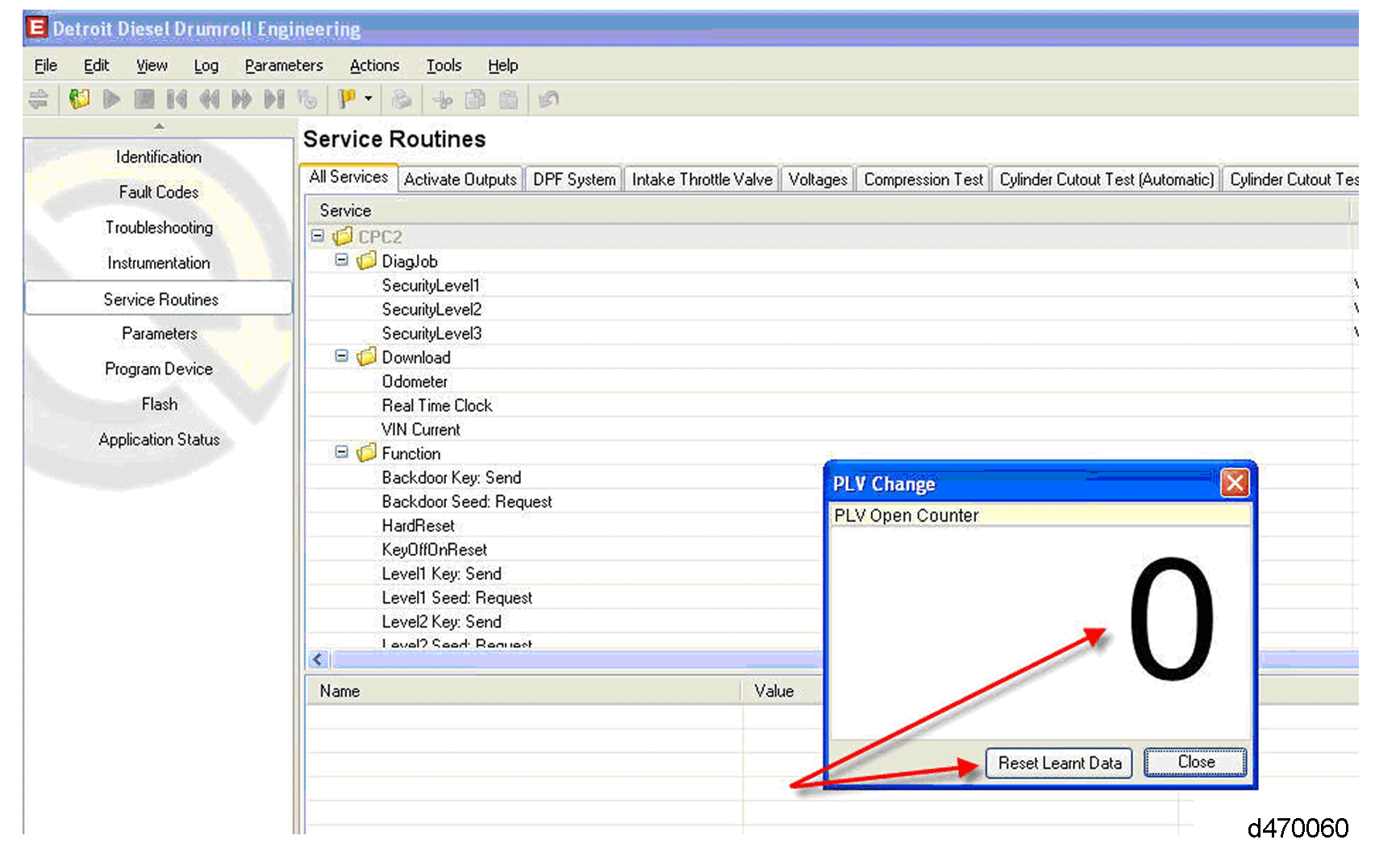

  5. The dialog box that appears shows the current PLV counter, and the ability to reset the counter.

    Note: Only reset the counter if the PLV is being replaced.

  6. Click the button “Reset Learned Data” to clear the counter.
    Click to see this graphic in a separate window


DD15 Fuel System Technician's Guide - DDC-SVC-MAN-0037
Generated on 10-13-2008
