DD15 Engine

Section 6.4 Resetting Quantity Control Valve Adaptive Values

Section 6.4
Resetting Quantity Control Valve Adaptive Values

This procedure will allow a technician to retrieve and clear the Quantity Control Valve adaptive values. The stored values should be reset ONLY when a Quantity Control Valve replacement has occurred.‪

Reset as follows:‪

  1. Install and connect DDDL 7.0.
  2. Navigate to the “Service Routines” panel
    Click to see this graphic in a separate window
  3. Click on the “Actions” tab located at the top of the screen.
    Click to see this graphic in a separate window
  4. Click on the tab labeled “Fuel System” and then “Replace Quantity Control Valve”.

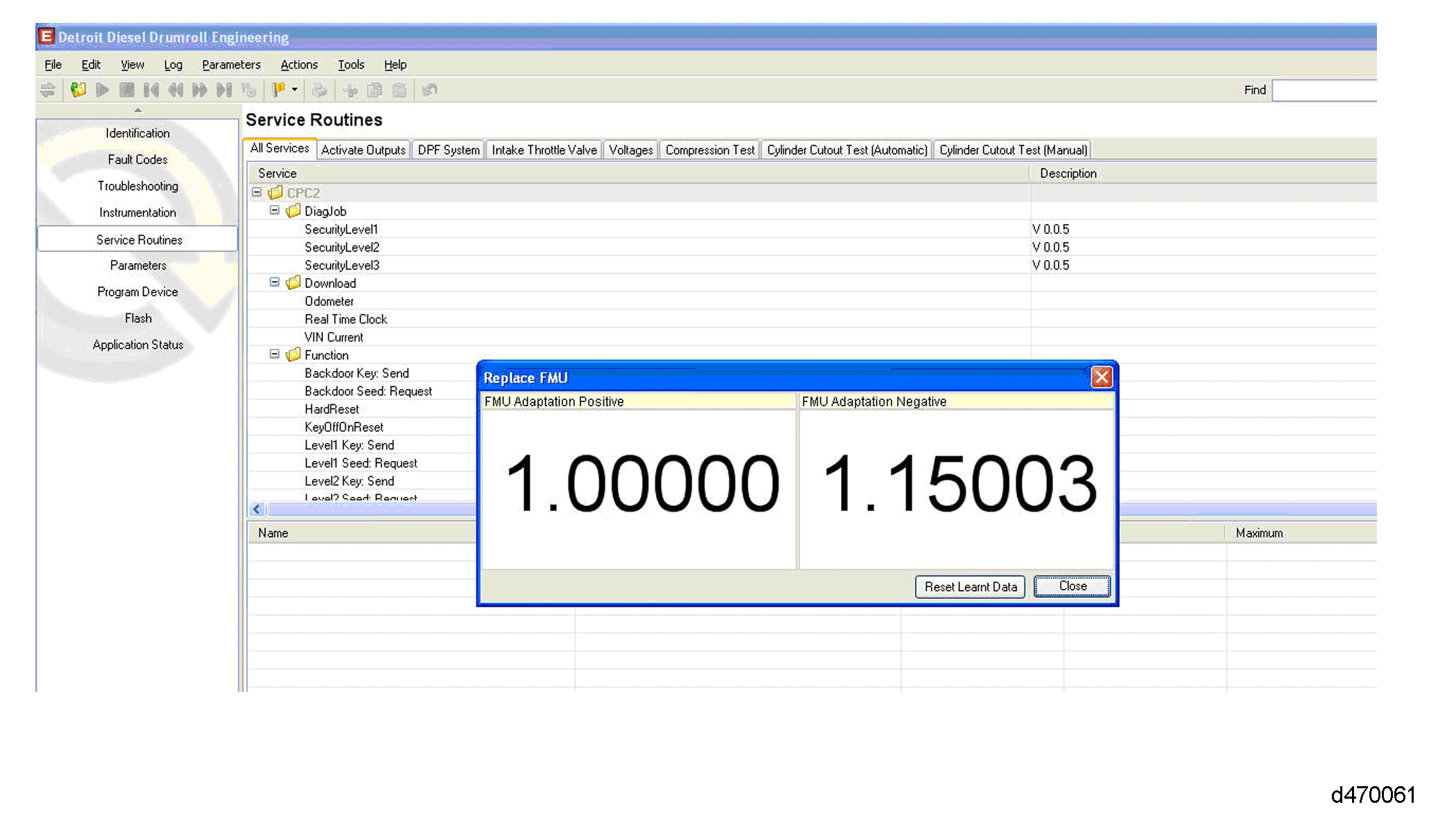

  5. The dialog box that appears shows the current quantity control valve adaptive values, and the ability to reset the values.
    Click to see this graphic in a separate window

    Note: Only reset the values if the quantity control valve is being replaced.

  6. Click the button “Reset Learned Data” to clear the counter.


DD15 Fuel System Technician's Guide - DDC-SVC-MAN-0037
Generated on 10-13-2008
