Series 40E

Section 4.4 Water Inlet Elbow

Section 4.4
Water Inlet Elbow

Follow these steps to remove and install the water inlet elbow.‪

Section 4.4.1
Removal of Water Inlet Elbow

Follow these steps to remove the water inlet elbow and gasket from the crankcase cover.‪

  1. Remove the three mounting bolts that attach the water inlet elbow to the crankcase cover. See Figure "Water Inlet Elbow Removal" .
    Click to see this graphic in a separate window

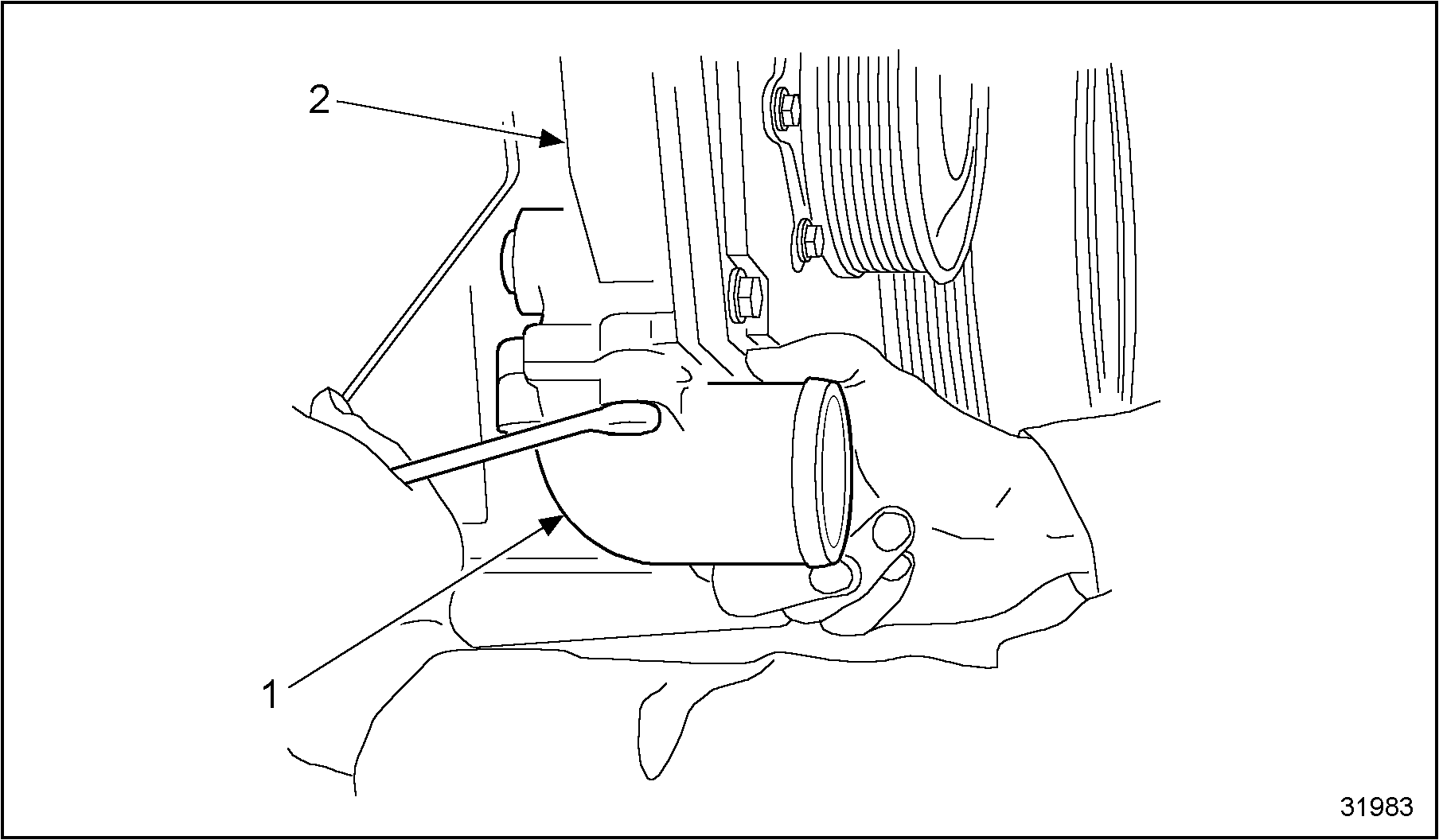

    1. Water Inlet Elbow‪

    2. Front Cover‪

    Figure 1. Water Inlet Elbow Removal

  2. Remove the water inlet elbow and gasket. Discard the gasket.

Section 4.4.2
Installation of Water Inlet Elbow

Follow these steps to install the water inlet elbow with a new gasket. ‪

  1. Install the water inlet elbow with new gasket to crankcase.
  2. Secure the water inlet elbow using three flanged bolts and torque to specifications. See Figure "Water Inlet Elbow Installation " . Refer to Specifications "Additional Information" in Section .
    Click to see this graphic in a separate window

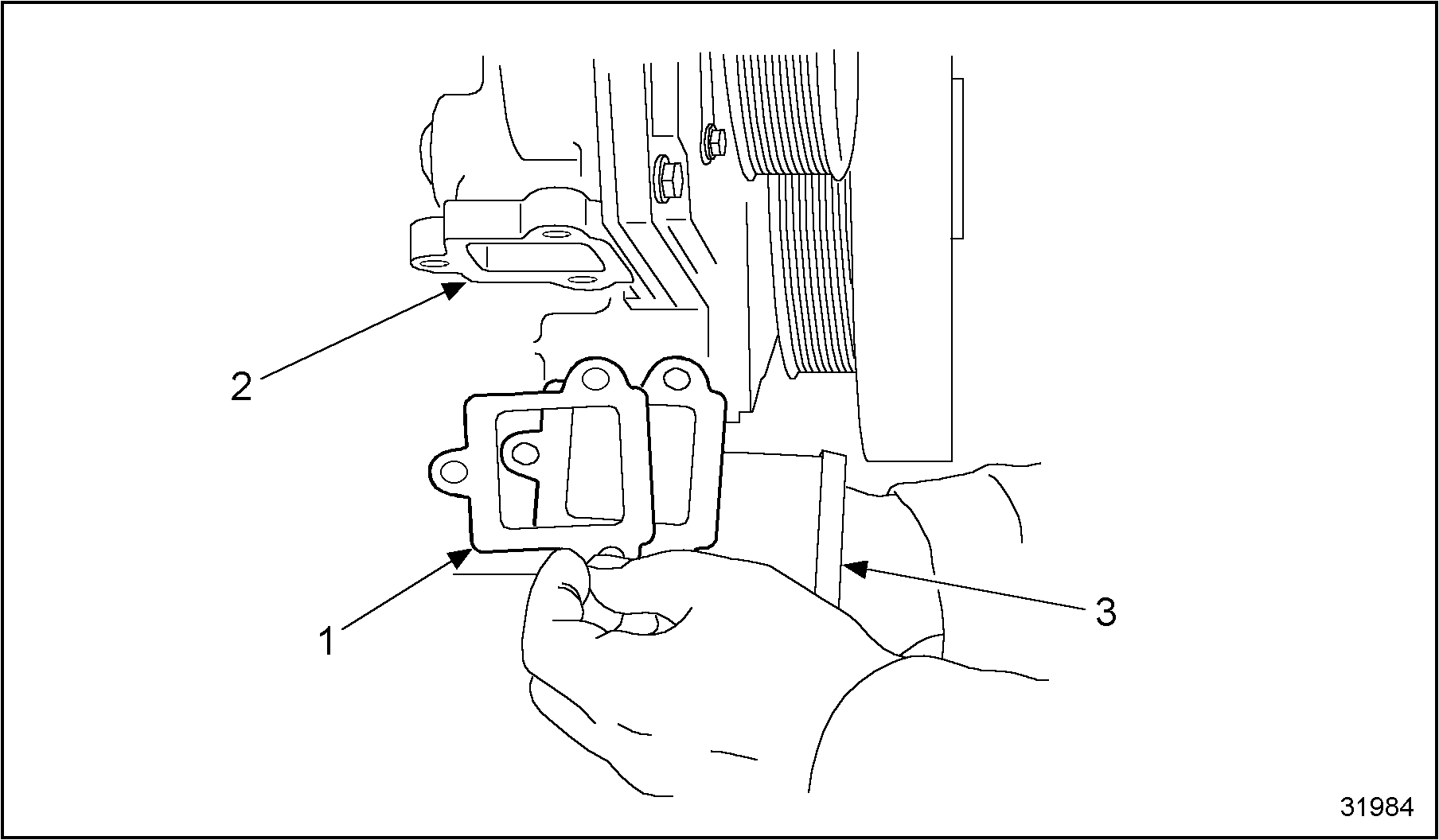

    1. Gasket‪

    3. Water Inlet Elbow‪

    2. Crankcase Front Cover‪

    Figure 2. Water Inlet Elbow Installation


Series 40E Service Manual - 6SE410
Generated on 10-13-2008
