Series 50

Section 24.5 Improper Injector Calibration Setting (DDEC III Engines Only)

Section 24.5
Improper Injector Calibration Setting (DDEC III Engines Only)

To determine if improper injector calibration setting (DDEC III engines only) is causing rough running or stalling, perform the following:‪

  1. Test for improper injector setting; refer to "16.3 Improper Injector Calibration Setting (DDEC III Engines Only)" .
  2. Compare the calibration code(s) shown on the Diagnostic Data Reader display with the two digit calibration code(s) on the injector(s).
    Click to see this graphic in a separate window

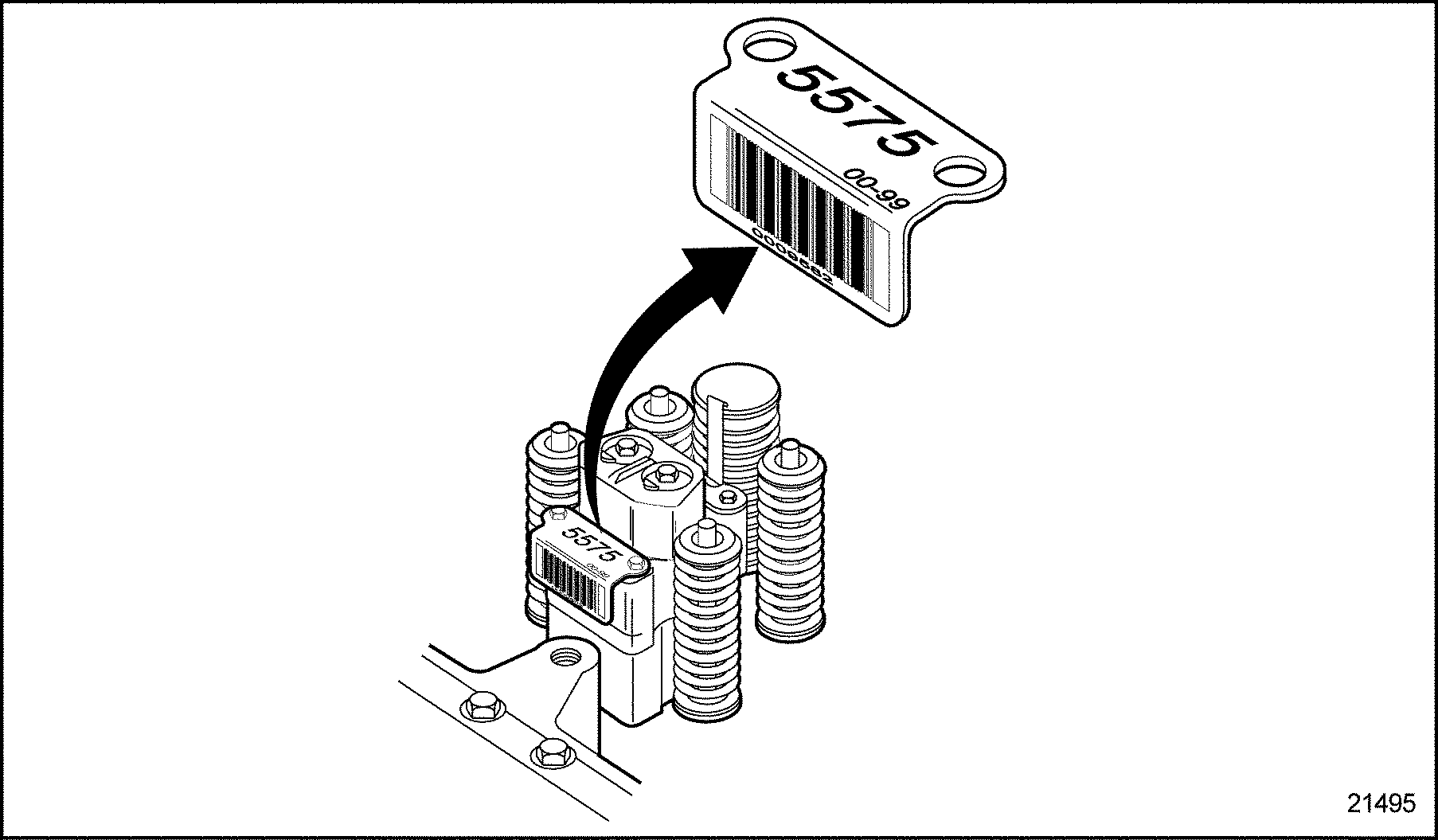

    Figure 1. Injector Calibration Code

    1. If the calibration codes match, refer to "24.6 Low Compression Pressure" .
    2. If the calibration code on the display is different then the calibration code on the suspect injector for that cylinder, the injector setting must be reset, see Figure "Injector Calibration Code" ; refer to "24.5.1 Improper Injector Setting Repair" .

Section 24.5.1
Improper Injector Setting Repair

Perform the following steps to recalibrate improper injector setting:‪

  1. Reset incorrect injector setting; refer to "16.3.1 Improper Injector Setting Repair" .
  2. Verify injector setting repair; refer to "24.5.1.1 Test the Engine with Corrected Injector Setting" .
Section 24.5.1.1
Test the Engine with Corrected Injector Setting

Perform the following to determine if the corrected injector setting resolved rough running or stalling: ‪

  1. Start and run the engine.
  2. Run the engine through its operating range with no-load for approximately 5 minutes, allowing the engine coolant to reach normal operating range, 88-96°C (190-210°F).
    1. If the engine is not running rough or stalling, no further troubleshooting is required. Shut the engine down.
    2. If the engine is running rough or stalling, shut the engine down. Check for low compression pressure; refer to "24.6 Low Compression Pressure" .


Series 50 Service Manual - 6SE50
Generated on 10-13-2008
